Delta Elektronika SM800 Series

POAExcluding Tax

Request a Quote

Description

Description

Longlife precision

The SM800 Series consists of power supplies with excellent lifetime and stability. Multiple power supplies can be connected in series, parallel or both in series and parallel to create numerous output configurations. Optionally, power sink can be ordered with this power supply to be able to dissipate up to 140 W.

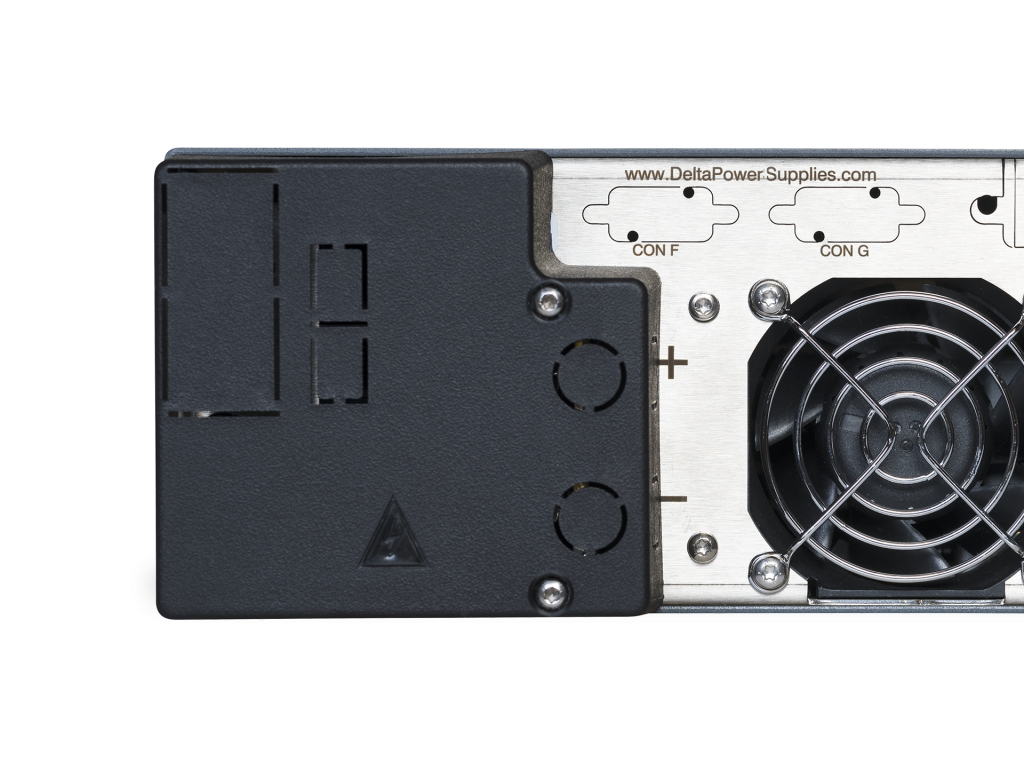

Standard, the SM800 can be controlled either via the front or an analog input at the rear of the power supply. Optionally, Ethernet, RS232 or isolated remote programming features can be factory installed. Furthermore, external interface modules are available to add this functionality to existing units.

High isolation voltage

The output terminals of all units, including the low voltage variants, are floating and isolated up to 600 V DC. Combined with the optional 19″ mounting, the power supply can be integrated into larger systems easily. In those situations, the interlock connector can be used for system level protection measures.

Features

  • Designed for long life at full power
  • Excellent dynamic response to load changes
  • Protected against all overload and short circuit conditions
  • EMC surpasses CE requirements: low emission & high immunity
  • Low audible noise: fan is temperature controlled

Functionalities

  • Master/Slave parallel and series operation with voltage and current sharing
  • Stacking is allowed, space between units is not required
  • High power system configuration from multiple units
  • Laboratory use (feet included), 19” rack mounting optional
  • Remote sensing
  • Interlock

Specification

Specifications

  • Input voltage (single phase): 90-265 VAC (48-62 Hz)
  • Active Power Factor Correction (PFC): 0.99 (at 100% load)
  • Efficiency: up to 89% (at full load)
  • Output ripple and spikes: from 2 mVRMS / 8 mVPP
  • Regulation: from 0.2 mV (0-100% load step)
  • Recovery time: from 100 µs (50-100% load step)
  • Programming speed: from 4 ms (10-90%), optional from 0.2 ms
  • Analog programming accuracy: from 0.2%
  • Output voltage and current stability: 6.10-5 / 9.10-5
  • MTBF: 500 000 hrs
  • Operating ambient temperature: -20 to +50 ºC

Standards

  • Emission: EN 61326-1 (class B equipment, for use in domestic establishment)
  • Immunity: EN 61326-1 (equipment for use in industrial and domestic establishment)
  • Safety: EN 60950-1 / EN 61010-1
  • Insulation input / output: 3750 VRMS (1 min.)
  • Protection class: IP20

Dimensions and weight

  • Width: half 19 inch
  • Height: 2 U
  • Depth: 406 mm
  • Weight: 5.4 kg

Downloads

Data sheets Type/Format Size
Data sheet SM800 series           pdf 530.13 KB
Data sheet Power sink option SM800 series           pdf 198.33 KB
Data sheet High speed programming option           pdf 320.08 KB
Data sheet Digital encoders option           pdf 284.06 KB
Data sheet Isolation amplifier           pdf 515.7 KB
Data sheet RS232 interface           pdf 211.31 KB
