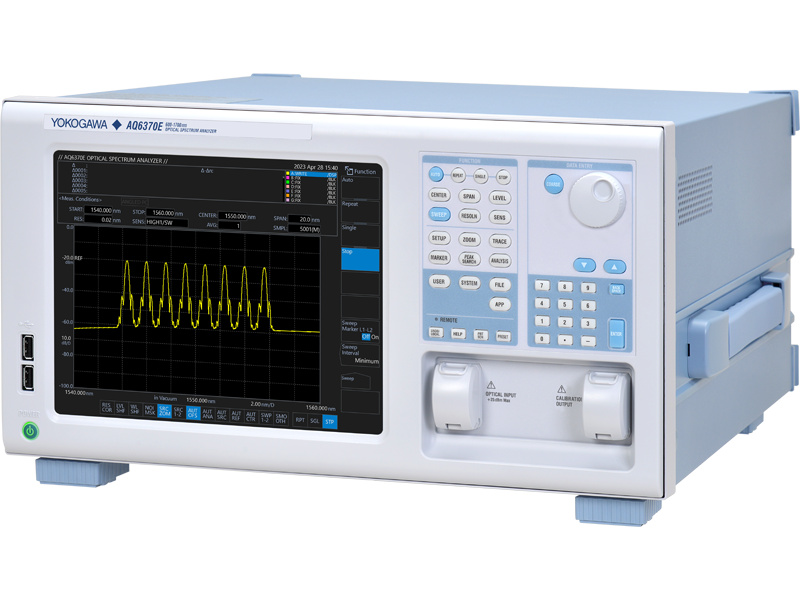

Yokogawa AQ6370E Telecom Optical Spectrum Analyzer 600 – 1700 nm

POAExcluding Tax

Request a Quote

Description

Description

The AQ6370E OSA has a versatile wavelength range of 600 nm to 1700 nm, ideal for both telecom and general purpose applications. The unique free-space input design allows testing of both DWDM-class single-mode and VCSEL-sourced multimode fibers in a single model and the high-speed measurement mode, high close-in dynamic range mode, touch panel, and APP function greatly improve measurement efficiency.

    • Wavelength range:600 to 1700 nm
    • Wavelength accuracy:±0.008 nm typ.
    • Wavelength resolution:0.02 nm
    • Close-in Dynamic range:78 dB typ.
    • Level range:+20 to -90 dBm
    • Up to 2x faster measurement: SMSR mode
  • Sharper spectrum measurement: HCDR mode
  • Large touchscreen LCD

World-Class Optical Performance

  • Wavelength range: 600 to 1700nm
  • High wavelength accuracy: ±0.008 nm typ.
  • High wavelength resolution: 0.02nm
  • Wide dynamic range: 78dB typ.
  • Wide level range: +20 to -90dBm
  • Fast measurement: 0.2 sec. (100nm span)
  • Applicable to single-mode and multimode fibers

Standard and High-Performance Models

There are two models available, Standard and High performance. The High performance model provides even higher wavelength accuracy and dynamic range.

High wavelength resolution: 0.02nm
