VIAVI IFR6000 Transponder/DME/TCAS Flight Line Test Set

Category: Tag:

POAExcluding Tax

Request a Quote

Description

Description

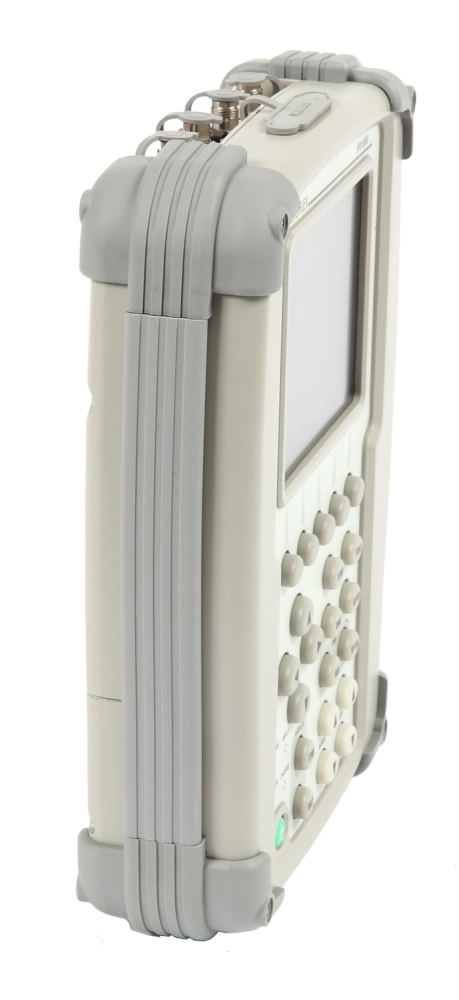

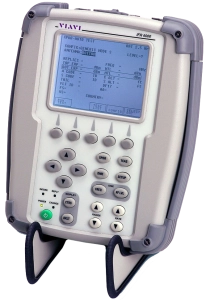

The IFR6000 is a compact, lightweight and weatherproof unit designed for testing transponder modes A/C/S, 1090 MHz ADS-B and 978 MHz UAT, TCAS I and II, and DME. The IFR6000 features an extremely easy to use interface where every parameter the user commonly needs to view is displayed on screen.

The IFR6000 is the only ramp test set capable of verifying all aspects of next generation transponder testing, including ADS-B testing, FIS-B and TIS-B testing. Most tests can be completed without leaving the main user screens. This simplifies the line technician’s testing task.

Key Features

  • Individual test modes: Mode S, ATCRBS Transponder, DME, TCAS, TIS, ADS-B MON/ ADS-B GEN (DO-260A/B), 978MHz UAT
  • Large keys for gloved operation
  • Simple user interface
  • Lightweight and compact at 8 lbs.
  • Battery operation 6 hours plus between charges
  • Fully FAR part 43 appendix F compliant
  • Transponder Auto-Test
  • Data dump of transponder test results to PC
  • Elementary and Enhanced Surveillance parameters (DAP’s)
  • Transponder level automatically determined and capability checked to avoid nuisance Auto-Test failures
  • Comprehensive GICB test
  • Configuration files for different classes of transponder
  • Comprehensively tests any DME channel including track sensitivity
  • User selectable TCAS scenarios
  • TCAS fast scenario feature uses Auto Altitude and Converge to ensure automatic collision at zero range
  • Over-the-air or direct-connect operation
  • Parametric measurements including TX power and frequency
  • USB flash drive software update via web site download
  • Optional ADS-B capabilities are DO-260A/B compliant
  • Optional TCAS and 978 MHz UAT capability
  • Optional testing using UC-584 Coupler

Benefits

  • Provides a full FAR Part 43, Appendix F test
  • Verification of ADS-B/UAT installed systems
  • Avoid ATC interference with optional coupler
  • Data dump of transponder test results to PC
  • Software updates available via website

Specification

Standard Acessories

  • 10241 Transit case
  • 52302 Power cord, 110V
  • 54020 Power cord set, 220V
  • 52401 TNC/TNC Coax. 12 in.
  • 112830 TNC/TNC Coax. 72 in.
  • 56080 Fuse, 5 Amp. 32V
  • 112684 Antenna 64749 Antenna shield

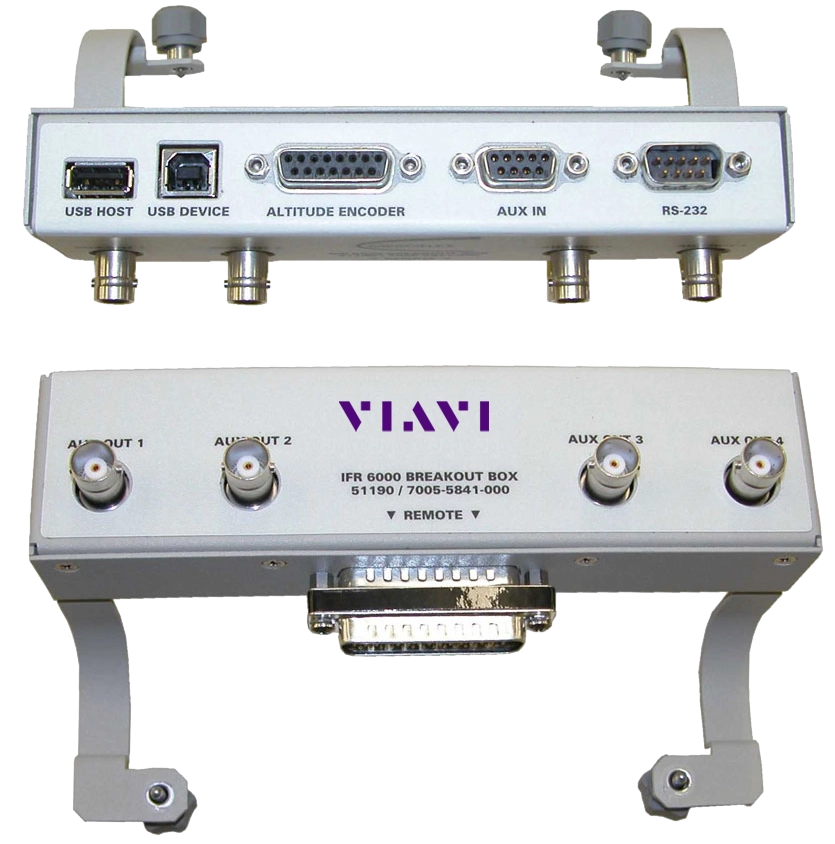

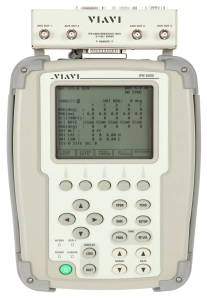

  • 64580 Breakout box
  • 67366 Power supply
  • 6096 Getting Started Manual
  • 6093 Operation Manual – CD

Optional Accessories

  • 63656 Desk top stand
  • 67474 Tripod
  • 82553 Tripod, dolly stand
  • 62462 25 ft. TNC/TNC coax.
  • 86336 50 ft. TNC/TNC coax.
  • 112349 UC-584 Coupler Kit, dual antenna
  • 112350 UC-584 Coupler Kit, single antenna
  • 6095 IFR6000 Maint. Manual – CD
