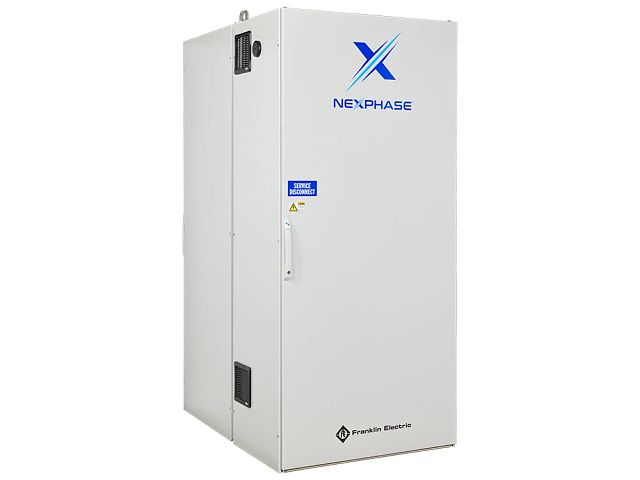

Franklin Grid NEXPHASE™ Smart EV Switchgear
POAExcluding Tax
Description
Description
The NexPhase™ Smart EV Switchgear is a turnkey EV charging infrastructure solution. NexPhase™ integrates all necessary components required between the utility service and Level 3 DC fast chargers into an all-in-one panel solution.Unlike any switchgear of its kind, the NexPhase™ Smart EV Switchgear features cutting-edge grid intelligence for switchgear and EV charger remote monitoring and control.

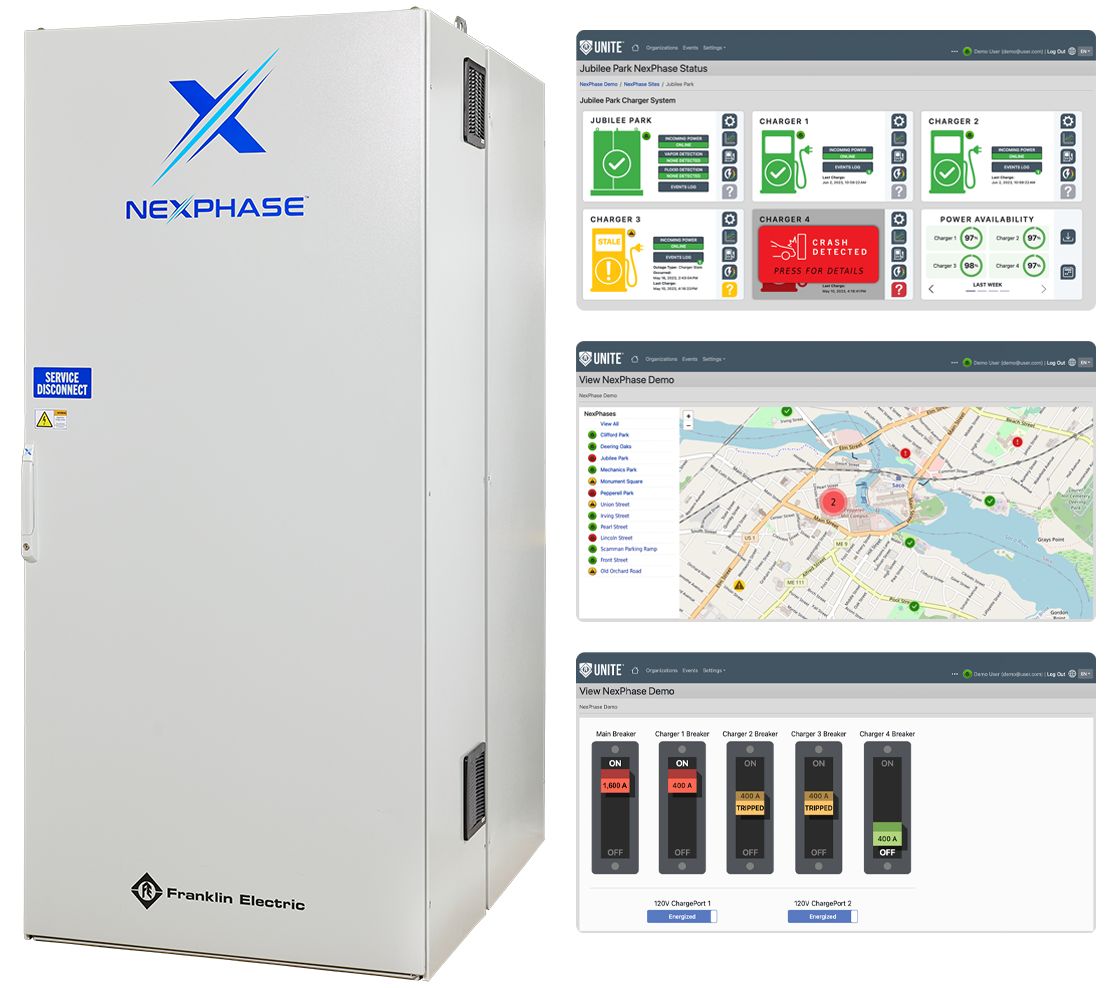

Highlights
- Integrated power distribution / utility termination solution
- Remotely monitored & controlled circuit breakers
- Embedded power quality monitoring with advanced analytics
- Remote EV charger hard reboot capabilities
- Advanced charger outage troubleshooting
- Facilitates greater charger uptime
- EUSERC compliant, UL listed
- NEVI funding compliant
THE NEXPHASE™ ADVANTAGE
What makes NexPhase™ different than standard switchgear? Unlike any infrastructure of its kind, NexPhase™ features cutting-edge grid intelligence for utility power and EV charger remote monitoring, troubleshooting, and control. As the vital link between the utility power and chargers, NexPhase™ provides uptime features that chargers alone cannot offer. Added safety options include inputs for charger crash detection, flammable vapor monitoring, and flood detection with E-stop shutdown monitoring.
Specification

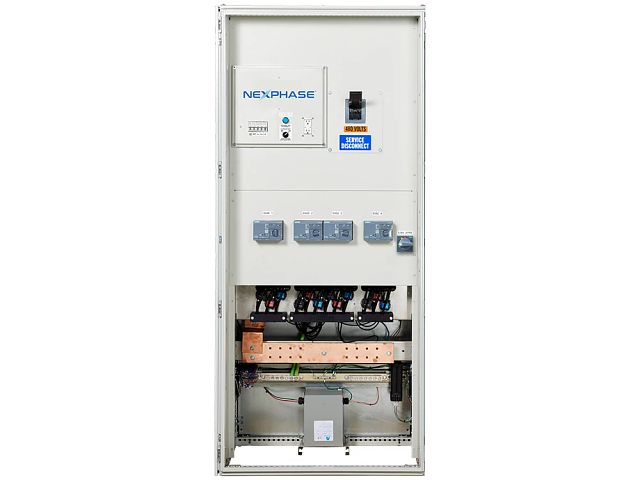

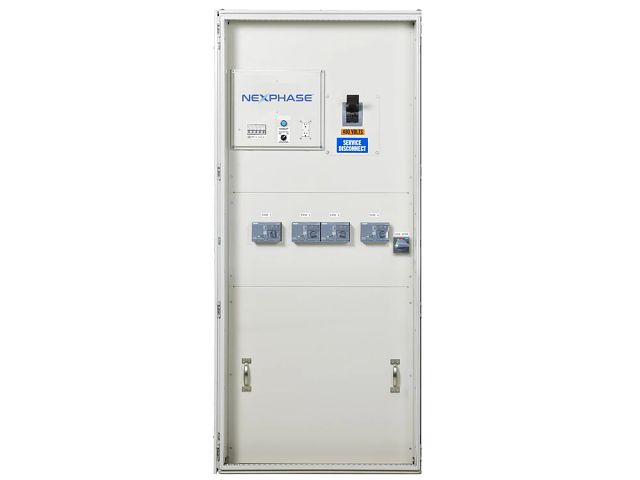

ELECTRICAL

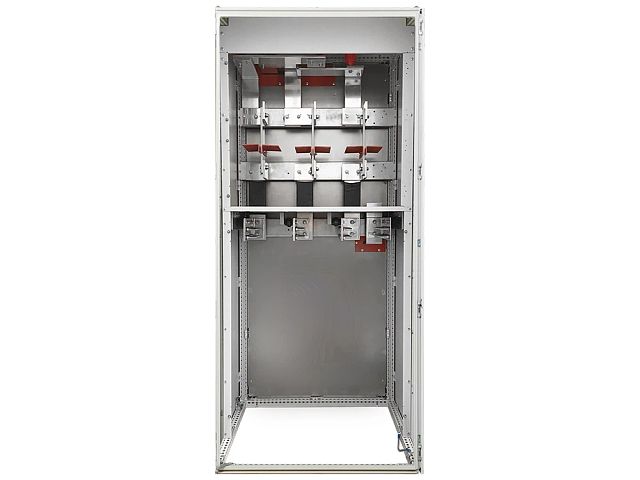

| Utility Input | 480 VAC Wye, 3-phase, L1, L2, L3 Neutral |
| Utility Connections | Up to 5 parallel runs (L1, L2, L3, N) 1/2″ diameter, 13/4″ NEMA bolt spacing for compression lug |
| Current Transformer | Ring type |
| Meter Socket | 13 – 15 jaw ring type with test switch plate |
| Bus Capacity | 2000 A |
| Main Service Circuit Breaker | 480 VAC Wye connected, 3-phase, electronic adjustable trip unit: 1600 A frame (600 A – 1600 A) |
| Main Service Current Rating (SCCR) | 65 kA |
| Ground Fault Detection | Main service breaker |
| Surge Protection Device (SPD) | Type 1/2, UL 1449 |
| Arc Energy Reduction | NEC 240.87 Compliant Maintenance Mode |
| Number of 480 V Branch Breakers | Up to 4 electronic adjustable trip unit: 400 A frame (150 A – 400 A) OR 600 A frame (250 A – 600 A) |
| Output Connection | L1, L2, L3: up to 2 parallel runs 2/0-600 kcmil (AL/CU, 75 deg C, mechanical lug) Neutral: 1/2″ diameter, 13/4″ NEMA bolt spacing for compression lug Ground: 6AWG-350 kcmil (AL/CU, 90 deg C, mechanical lug) |
| UPS | Maintenance free uninterruptible capacitive power supply (cULus Listed, UL 508) |
| Technician-Ready GFCI Outlet | 1 (15 A Max) |
PHYSICAL, ENVIRONMENT, COMPLIANCE, & SAFETY
| Dimensions / Weight | 391/2″ Width x 551/2 ” Depth x 87″ Height / 1,750 pounds (794 kg) |
| Enclosure | NEMA 3R indoor/outdoor electrical cabinet |
| Electrical Code | Designed for NFPA70; NEC2020 |
| Certifications / Approvals | UL Listed, UL891 (suitable for use as service equipment) |
| EUSERC | Meets drawings 322, 325, 332, 345, 347, 354 |
MONITORING / CONTROL
| Power Quality Monitoring | – Current – Voltage – Power factor – Apparent power – Active power – Reactive power – Accumulated apparent energy – Accumulated active energy – Accumulated reactive energy |
| Transaction Data | – Energy Consumption – Charger power state – Charger duration – Max average power – Daily/weekly usage – Accumulated energy per post |
| Available Sensor Inputs | Tilt (qty 4), water, hydrocarbon, emergency stop |
| Breaker Status | Open / closed / trip |
| Remote Control | Open / close each EV charger breaker via motor operators |
SOFTWARE INTERFACE
| Remote Connectivity | Ethernet, Cellular Modem |
| Cloud Based Data Acquisition | MQTTS Protocol |

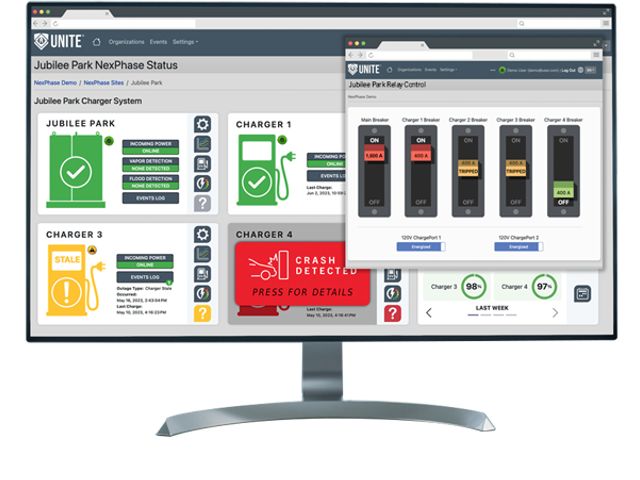

| User Interface | UNITE™ web-based, remote user interface (included – no subscription required) |
| API Data Integration | Available upon request for integration with existing business software platforms |
