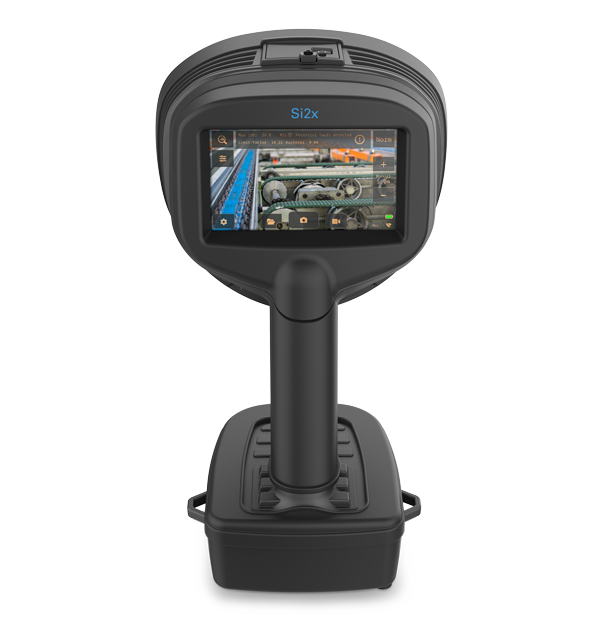

FLIR Si2x-LD Acoustic Camera

SKU: FLIR SI2X-LD Category: Tag:

€21,399.00Excluding Tax

Available on backorder

Request a Quote

Description

Description

The Si2x-LD Acoustic Imaging Camera is specifically designed for use in hazardous gas and explosive dust environments, to easily reduce leaks of toxic or flammable gases to improve safety, or cut expenses associated with compressed air or gas leaks in your facilities. With its advanced analysis tools, the Si2x-LD provides a robust solution for lowering costs associated with mechanical bearing issues. Engineered for hazardous operations, it offers best-in-class performance, decision support, and fleet management, along with enterprise data integration for optimal efficiency and safety.

For those requiring partial discharge detection, you can opt for the Si2x-Pro for PD, leak. and mechanical fault detection.

Advanced Leak Detection

Whether it’s a small hiss or a hard-to-find leak, this camera can identify and quantify compressed air and specific gas leaks from up to 200 m (656 ft) away, making it indispensable for ensuring operational efficiency and safety.

Mechanical Fault Analysis

Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing and other mechanical defects before they overheat or cause equipment failure.

Fleet Management Functionality

Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.

Specification

Acoustic Measurement
124 low-noise MEMS microphones, real-time sound visualization
Distance
From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate
0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
Wireless Data Transfer
Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
Imaging & Optical
Camera software update
Automatic Over The Air (OTA) wireless update or via USB connection
Field of view (FOV)
75° diagonal
Video Frame Rate
Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps
Video Image Resolution
1280 × 720
Zoom
8x Digital zoom
Measurement & Analysis
Acoustic Measurement
124 low-noise MEMS microphones, real-time sound visualization
Bandwidth
2 kHz to 130 kHz
Detection Threshold
20 kHz: -8 dB SPL
35 kHz: 4 dB SPL
50 kHz: 13 dB SPL
80 kHz: 42 dB SPL
100 kHz: 58 dB SPL
Detects Following Gases
Compressed Air, Nitrogen, Ammonia, Hydrogen, Carbon Dioxide, Methane, Helium, and Argon
Distance
From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate
0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
Mechanical Analysis
Mechanical Sound Indicator (MSI) Confirmation, Sound Pressure Level (dB), Crest factor, Kurtosis factor
User Interface
Display
Size: 5 in. 1280 × 720
Resistive touch screen, TFT LCD, MIPI DSI
Power
Battery
Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh
Max output: 16.8 V DC, 5 A
Battery Charger
Input: 19-26 V DC, 2.8 A
Max output: 17.4 V DC, 4.8 A
Battery weight
~ 0.25 kg
Nominal Input Voltage
Nominal input voltage: 12 V DC
Max input: 17 V DC , 3.3 A (limited)
Environmental & Certifications
Explosive [hazardous] Environment
Ex II 3 G Ex ic IIIC T4 Gc
Ex II 3 D Ex ic IIIC T135°C Dc
Tamb -10°C to 40°C
Operating And Storage Humidity
0-90% recommended
Operating Temperature Range
–10°C to 50°C (14°F to 122°F)
Protection Class
IP54
Storage Temperature Range
–20°C to 70°C ( –4°F to 158°F)
Warranty
support.flir.com/Si2
