Delta Elektronika EST150

POAExcluding Tax

Request a Quote

Description

Description

Triple output

The EST150 combines three power supplies into one housing. The power is characterized by its lifetime and stability. Multiple power supplies can be connected in series, parallel, or both in series and parallel to create numerous output configurations. Due to its small size and triple output, the unit is extremely suitable as a bench top power supply.

High isolation voltage

The output terminals are floating and isolated up to 600 V DC. This allows powering several circuits at different voltage potentials from only one device!

Features

  • Very low output ripple and spikes
  • EMC surpasses CE requirements: low emission & high immunity
  • Excellent dynamic response to load changes
  • Protected against all overload and short circuit
  • conditions
  • Designed for long life at full power

Functionalities

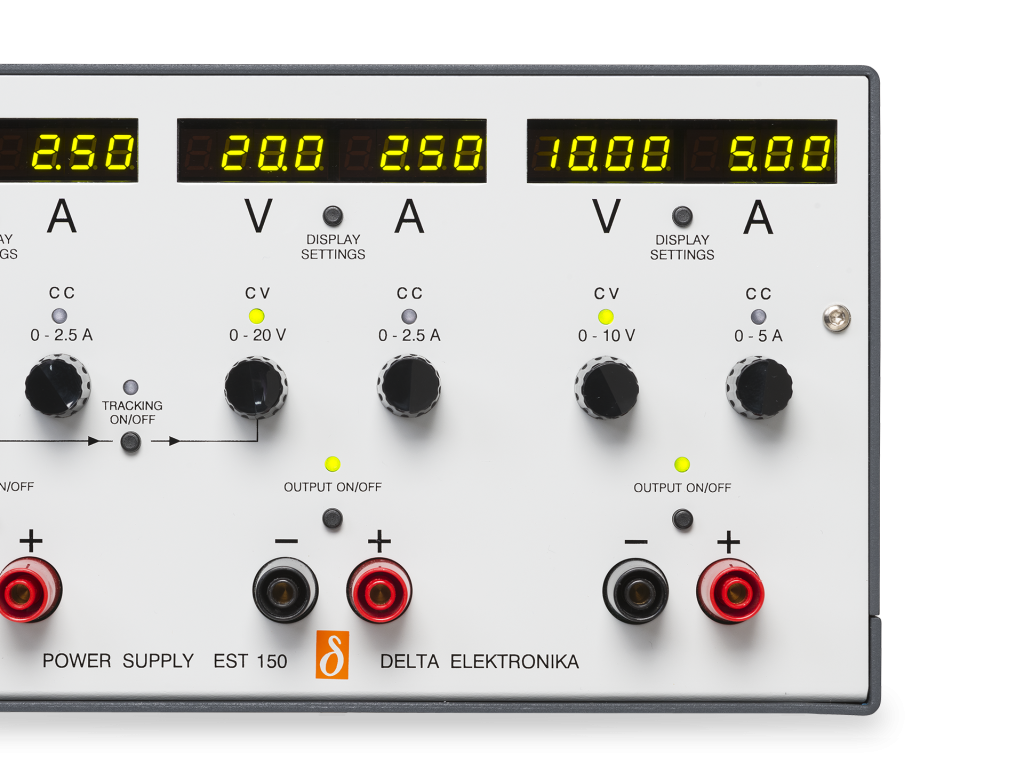

  • 3 independent, floating outputs
  • Dual voltage tracking or series tracking mode
  • 3 output On/Off buttons
  • Convection cooling
  • Voltage and current control with 10 turn potentiometers

Specification

Specifications

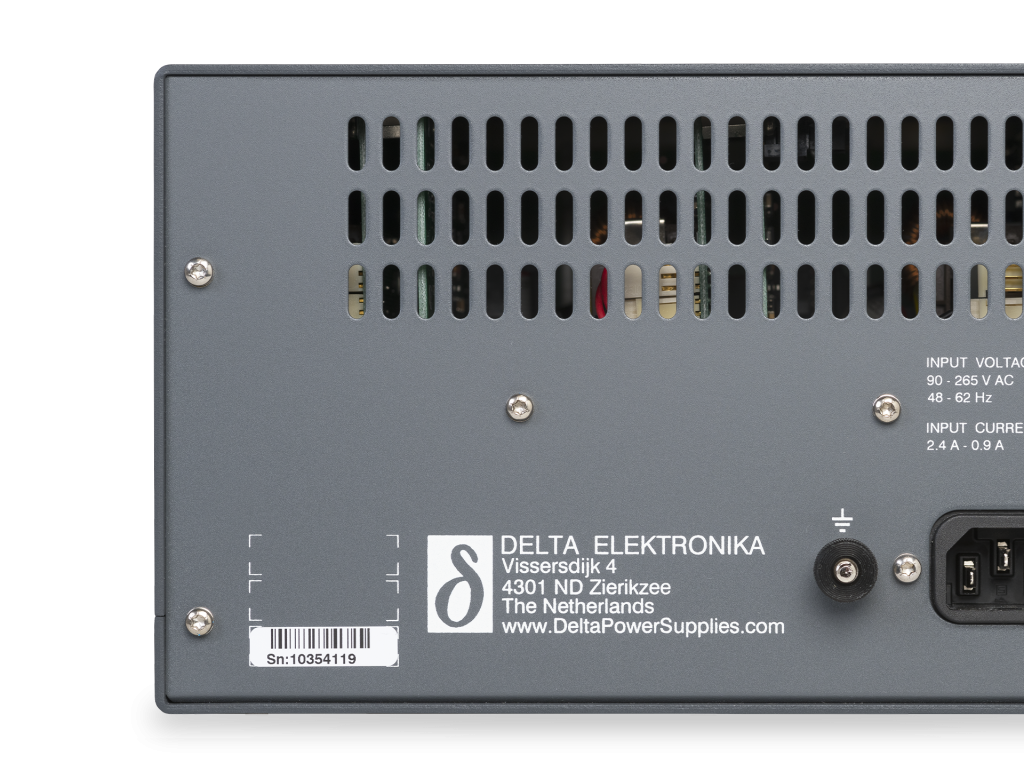

  • Input voltage (single phase): 90-265 VAC (48-62 Hz)
  • Active Power Factor Correction (PFC): 0.99 / 0.83 (at 100% load)
  • Efficiency: up to 81% (at full load)
  • Output ripple and spikes: from 0.5 mVRMS / 8 mVPP
  • Regulation: from 5 mV (0-100% load step)
  • Recovery time: from 100 µs (50-100% load step)
  • Tracking accuracy: 0.5%
  • Output voltage and current stability: 10.10-5 / 10.10-5
  • MTBF: 500 000 hrs
  • Operating ambient temperature: -20 to +50 ºC

Standards

  • Emission: EN 61326-1 (class B equipment, for use in domestic establishment)
  • Immunity: EN 61326-1 (equipment for use in industrial and domestic establishment)
  • Safety: EN 60950-1 / EN 61010-1
  • Insulation input / output: 3750 VRMS (1 min.)
  • Protection class: IP20

Dimensions and weight

  • Width: half 19 inch
  • Height: 146 mm, incl. feet
  • Depth: 180 mm
  • Weight: 3.5 kg
